Model No: 25*25*10mm
DC FAN 2510
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
Quantity :

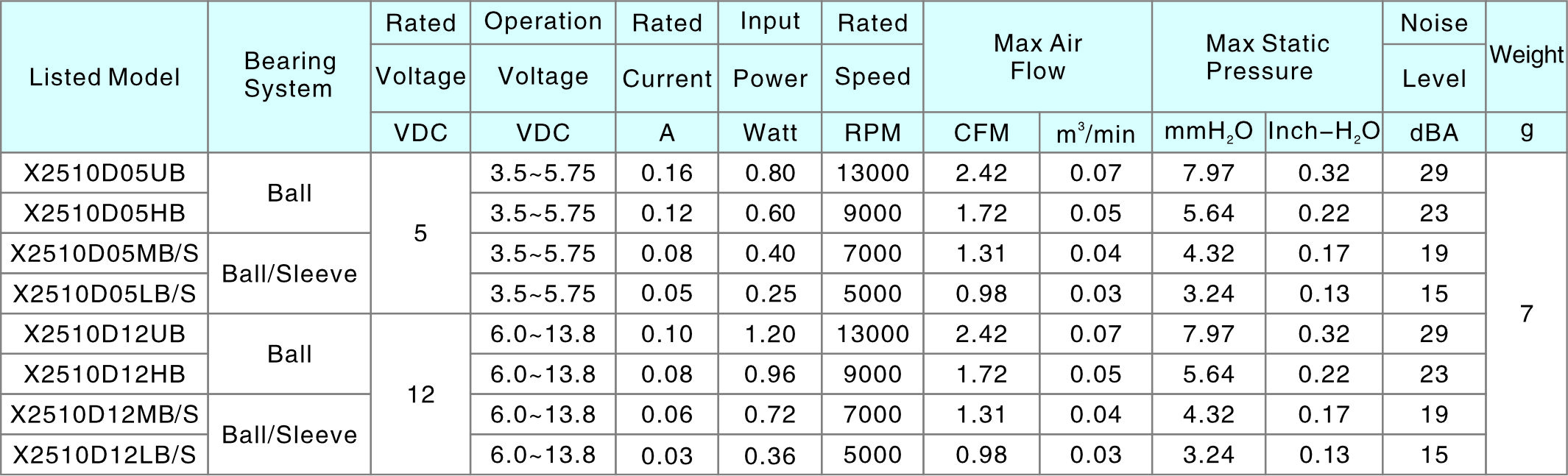

2510 DC brushless fan , Cooling fan , Axial flow fans, DC Fan

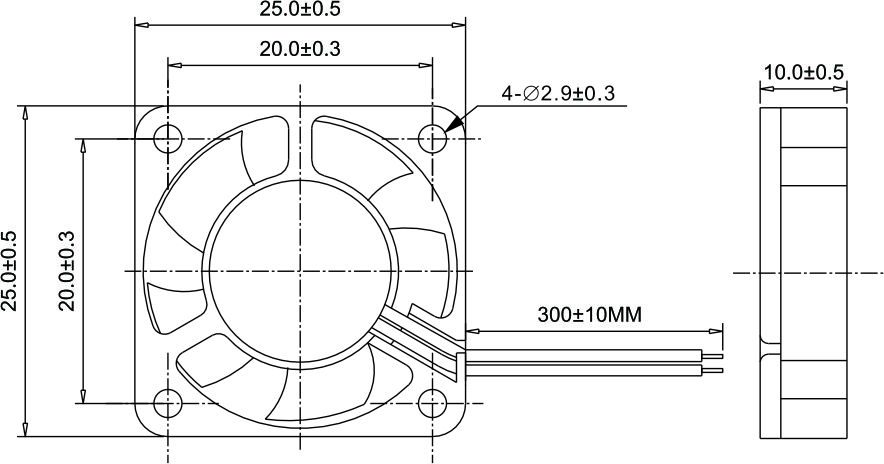

▲ Size: 25*25*10mm
▲Voltage: DC 5V-12V
▲Current: 0.03-0.16A
▲ Speed: 5000-13000rpm
▲Total Airflow: 0.98-2.42CFM

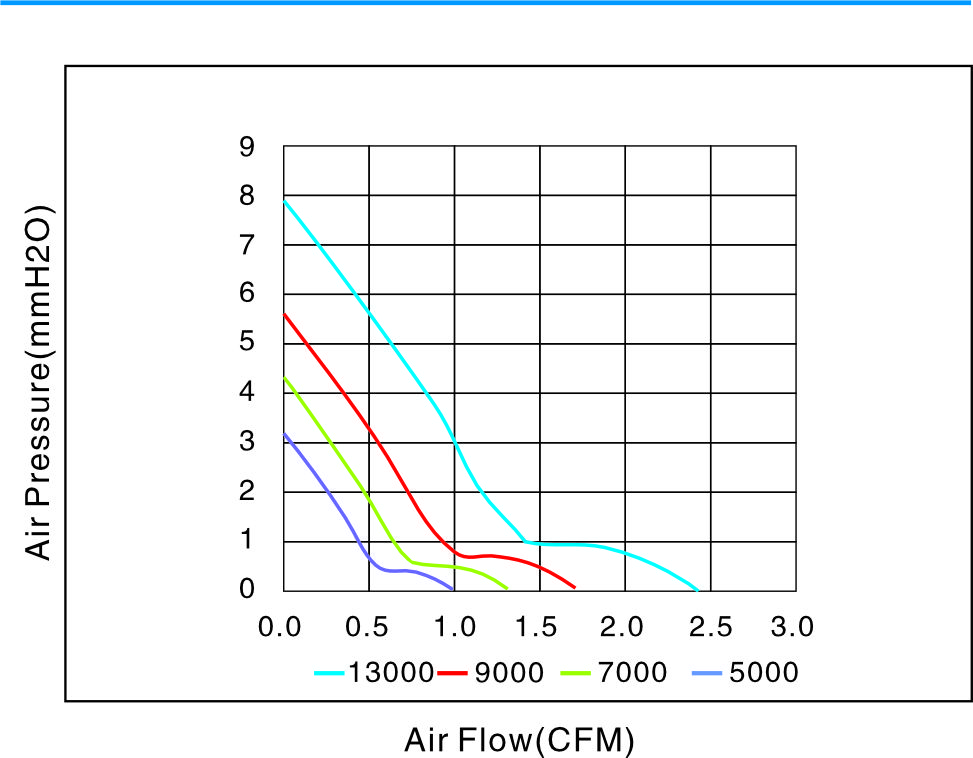

▲Air Pressure: 3.24-7.97mmH2O
▲Noise Level: 15-29dBA
