Model No: 92*92*25mm A02
DC FAN 9225 A02
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
Quantity :

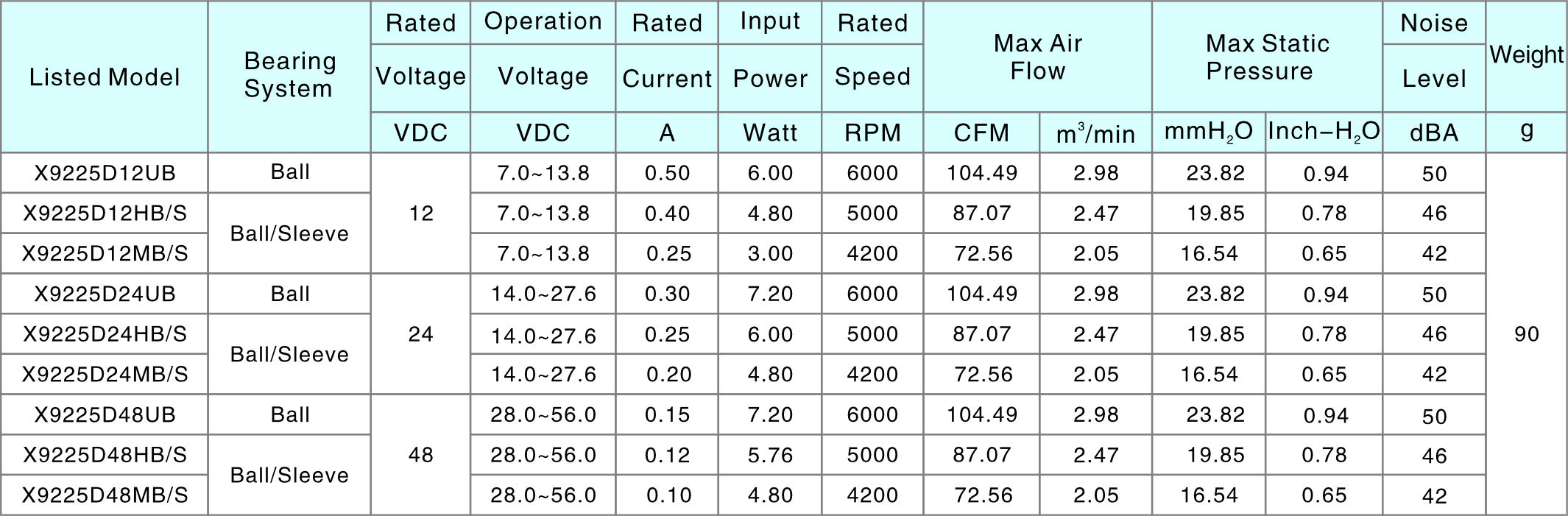

9225 DC brushless fan , Cooling fan , Axial flow fans, DC Fan

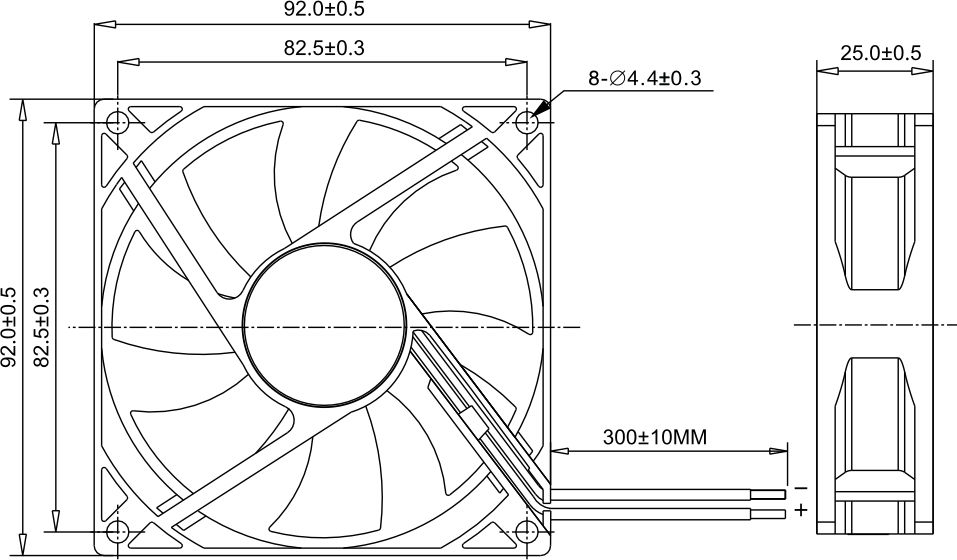

▲ Size: 92*92*25mm
▲Voltage: DC 12V-48V
▲Current: 0.1-0.5A
▲ Speed: 4200-6000rpm

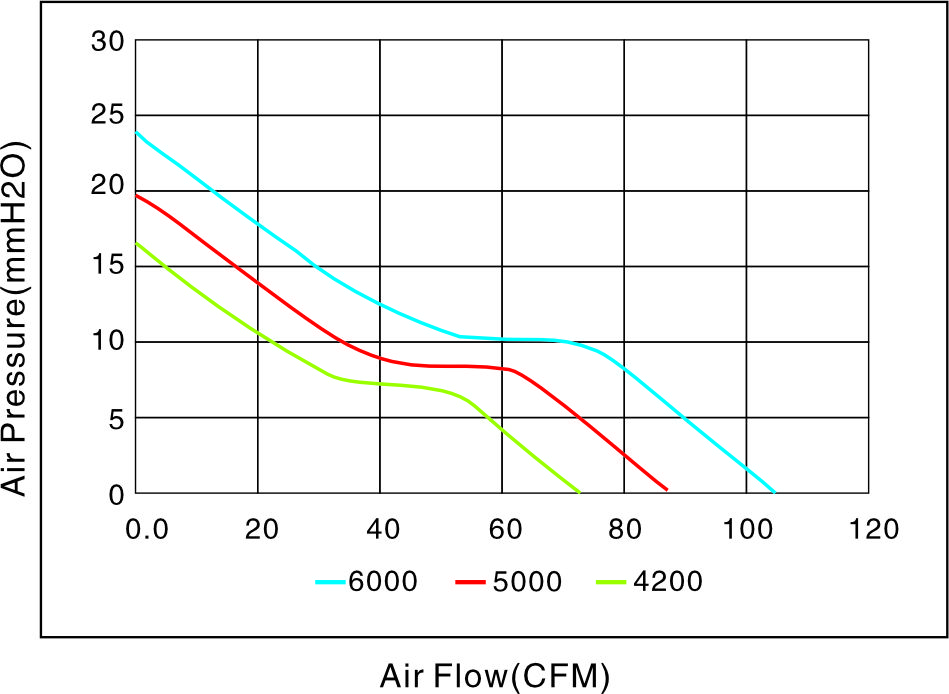

▲Total Airflow: 72.56-104.49CFM
▲Air Pressure: 16.54-23.82mmH2O
▲Noise Level: 42-50dBA
▲ Size: 92*92*25mm
▲Voltage: DC 12V-48V
▲Current: 0.1-0.5A
▲ Speed: 4200-6000rpm
▲Total Airflow: 72.56-104.49CFM
▲Air Pressure: 16.54-23.82mmH2O
▲Noise Level: 42-50dBA
