Model No: 92*92*20mm
DC FAN 9220
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
Quantity :

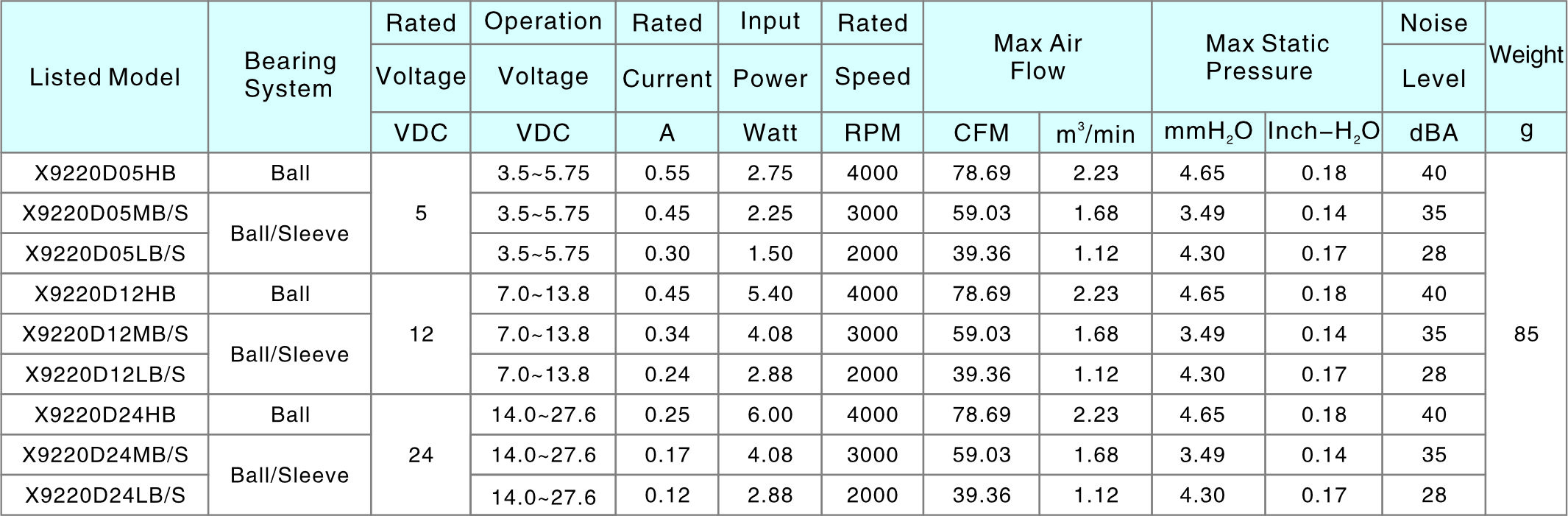

9220 DC brushless fan , Cooling fan , Axial flow fans, DC Fan

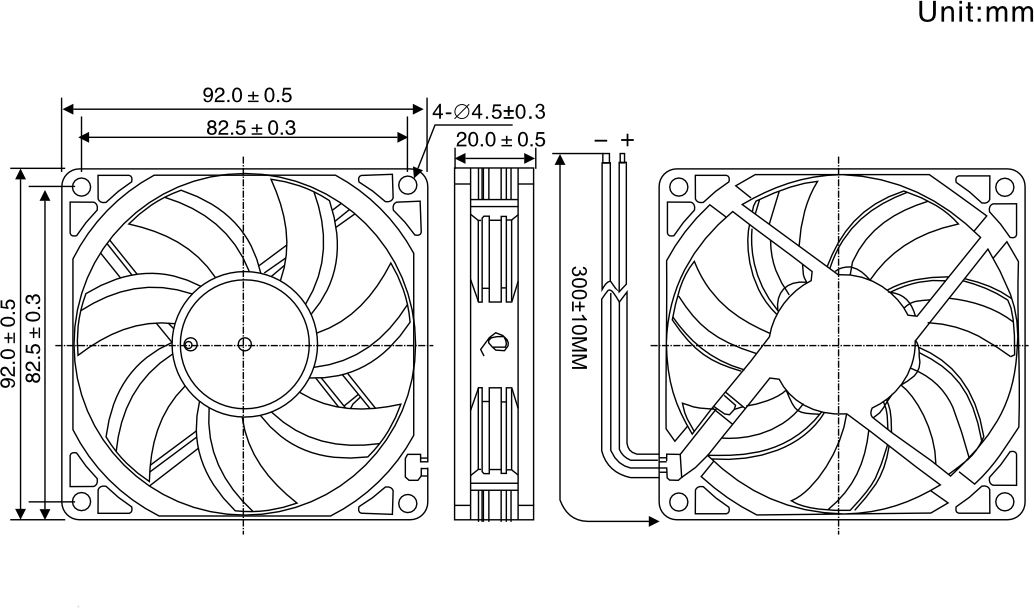

▲ Size: 92*92*20mm
▲Voltage: DC 5V-24V
▲Current: 0.12-0.55A
▲ Speed: 2000-4000rpm

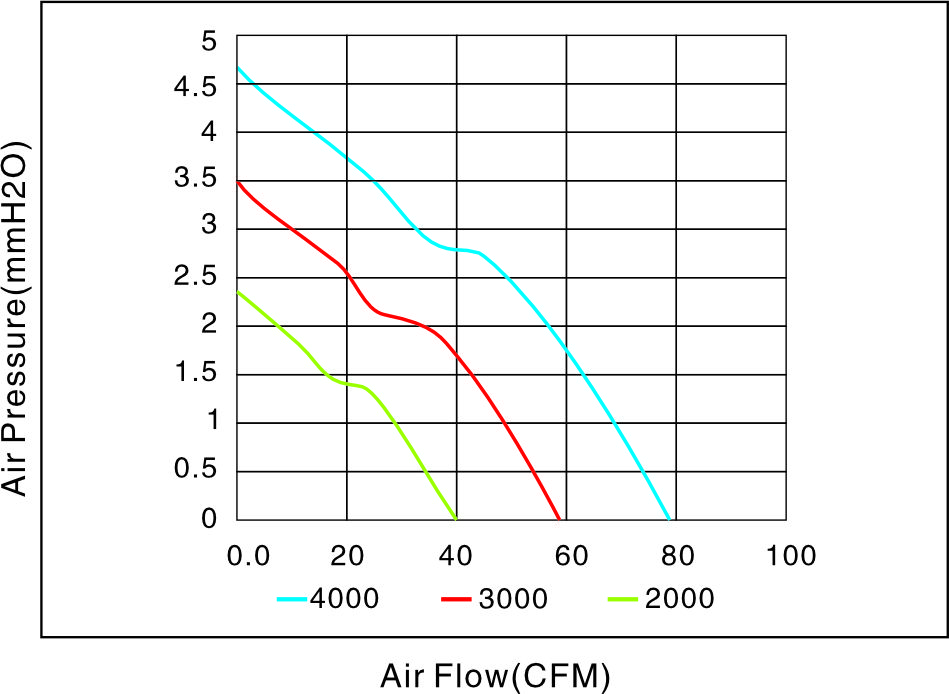

▲Total Airflow: 39.36-78.69CFM
▲Air Pressure: 3.49-4.65mmH2O
▲Noise Level: 28-40dBA
▲ Size: 92*92*20mm
▲Voltage: DC 5V-24V
▲Current: 0.12-0.55A
▲ Speed: 2000-4000rpm
▲Total Airflow: 39.36-78.69CFM
▲Air Pressure: 3.49-4.65mmH2O
▲Noise Level: 28-40dBA
