Model No: 80*80*25mm A02
DC FAN 8025 A02
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
Quantity :

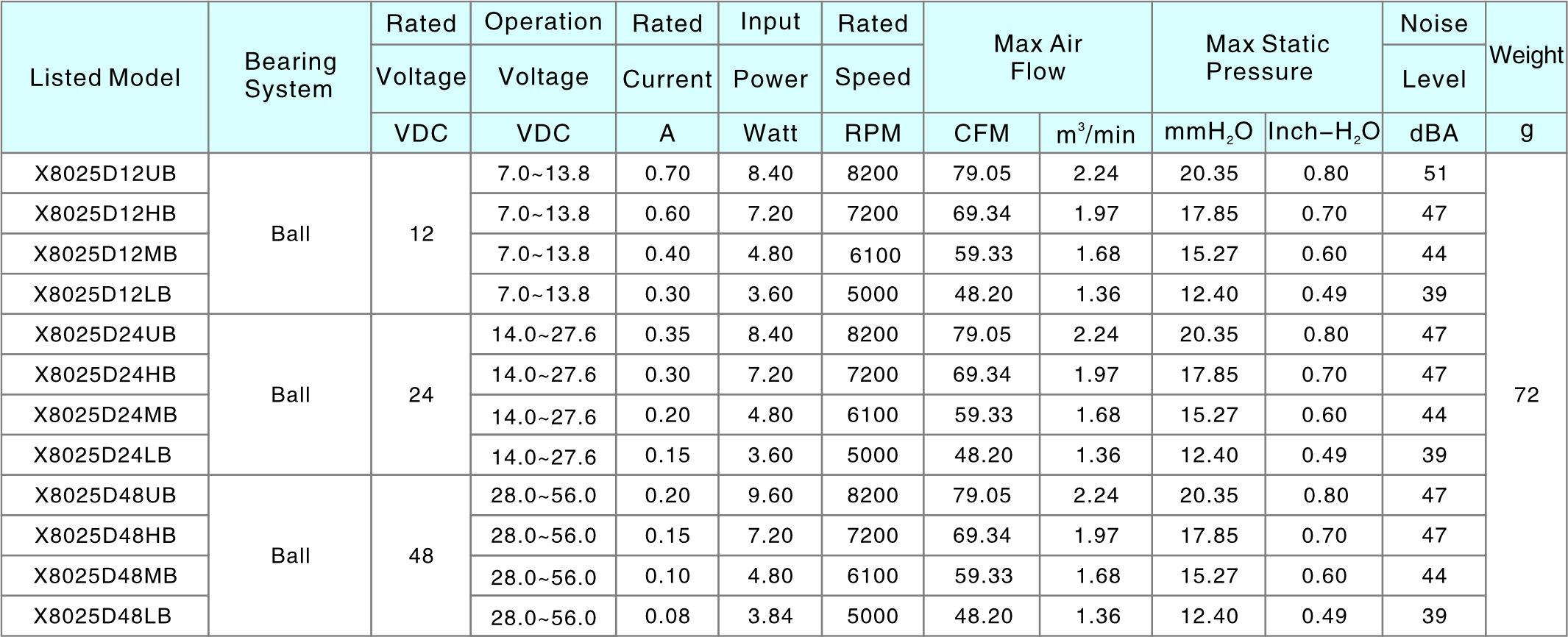

8025 DC brushless fan , Cooling fan , Axial flow fans, DC Fan

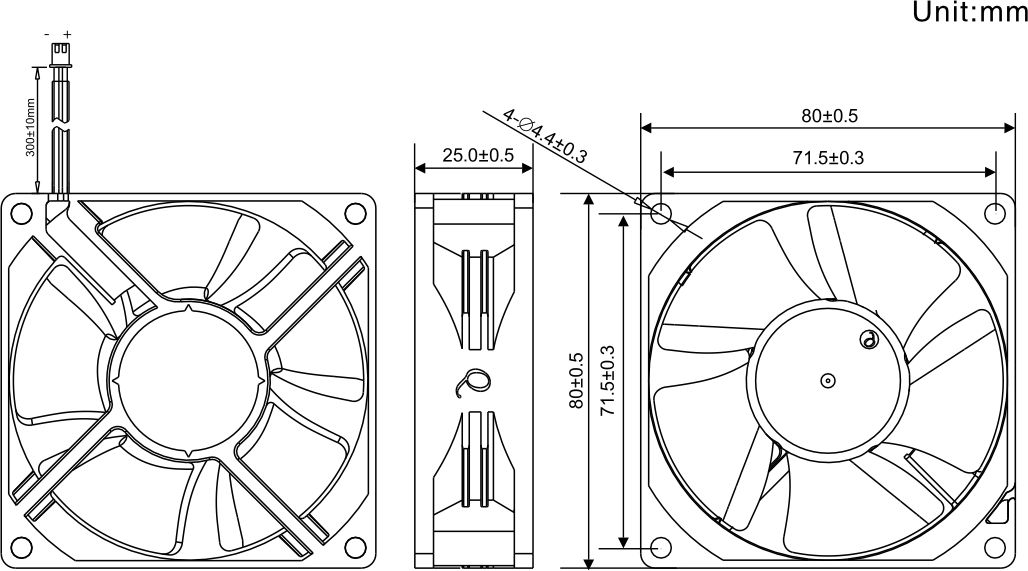

▲ Size: 80*80*25mm
▲Voltage: DC 12V-48V
▲Current: 0.08-0.7A
▲ Speed: 5000-8200rpm

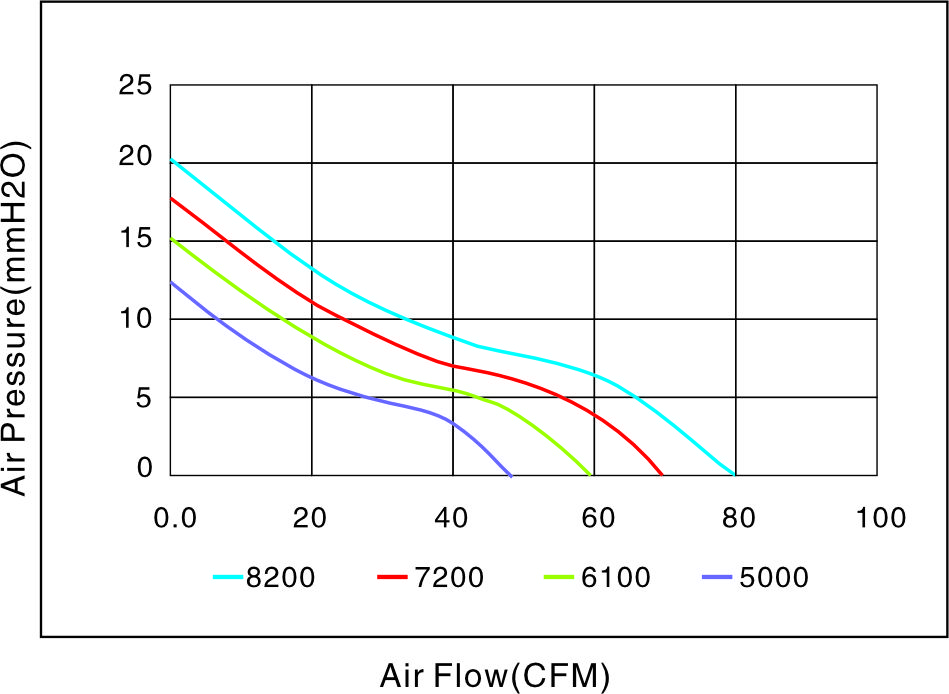

▲Total Airflow: 48.2-79.05CFM
▲Air Pressure: 12.4-20.35mmH2O
▲Noise Level: 39-51dBA
▲ Size: 80*80*25mm
▲Voltage: DC 12V-48V
▲Current: 0.08-0.7A
▲ Speed: 5000-8200rpm
▲Total Airflow: 48.2-79.05CFM
▲Air Pressure: 12.4-20.35mmH2O
▲Noise Level: 39-51dBA
