Model No: 80*80*10mm
DC FAN 8010
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
Quantity :

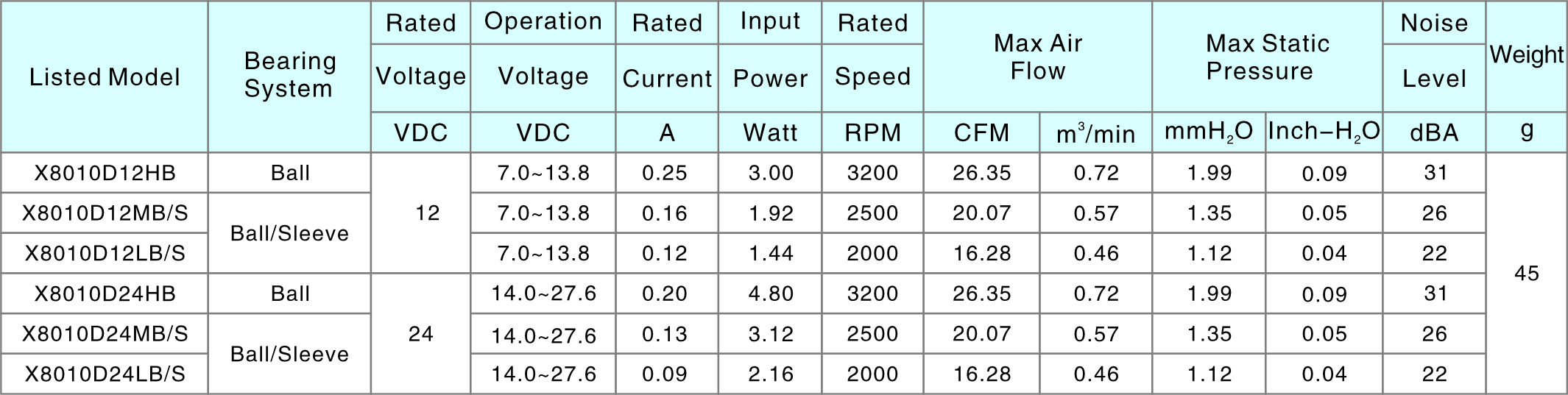

8010 DC brushless fan , Cooling fan , Axial flow fans, DC Fan

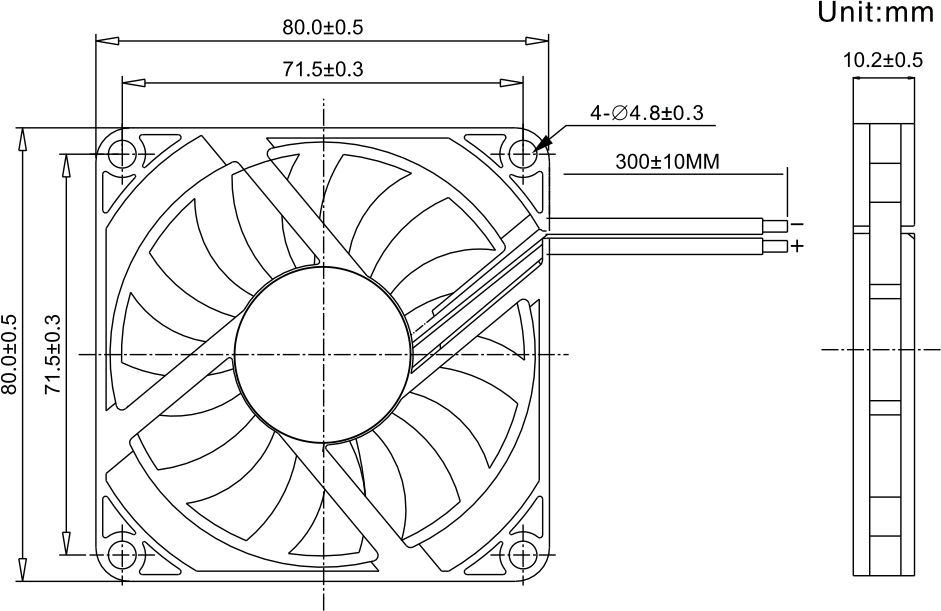

▲ Size: 80*80*10mm
▲Voltage: DC12V-24V
▲Current: 0.09-0.25A
▲ Speed: 2000-3200rpm

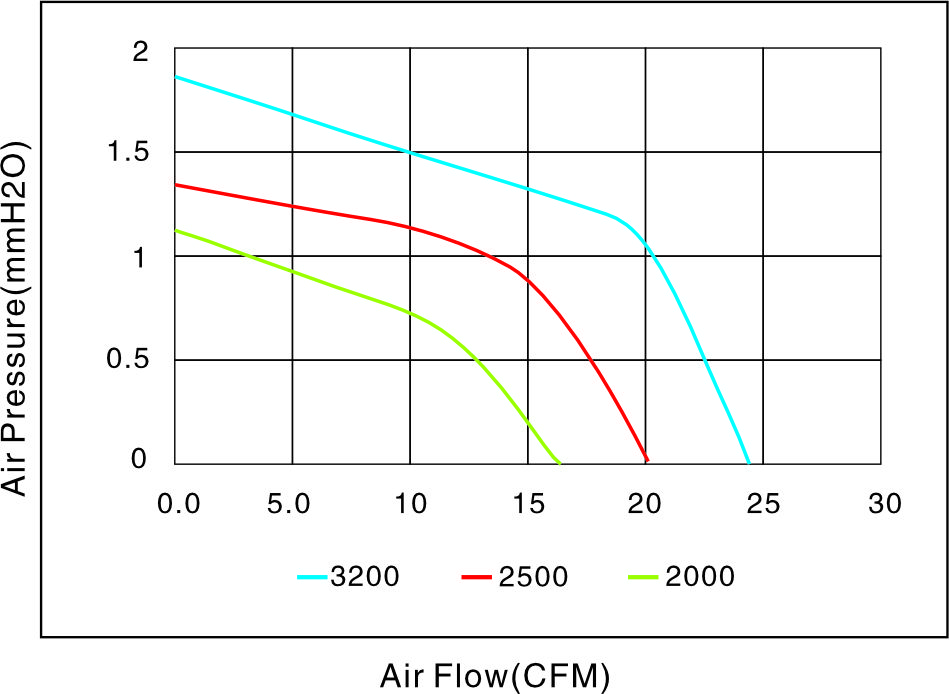

▲Total Airflow: 16.28-26.35CFM
▲Air Pressure: 1.12-1.99mmH2O
▲Noise Level: 22-31dBA
▲ Size: 80*80*10mm
▲Voltage: DC12V-24V
▲Current: 0.09-0.25A
▲ Speed: 2000-3200rpm
▲Total Airflow: 16.28-26.35CFM
▲Air Pressure: 1.12-1.99mmH2O
▲Noise Level: 22-31dBA
