Model No: 75*74*30mm
DC FAN 7530
* Bearings: Ball/Sleeve/Hydraulic Bearing
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
* Customizable Wire and Connectors
* Customizable Function for Motor protection(RP/SS/LP/CL),Signal output(FG/RD/RDB/LD),Speed control mode(PWM/TC/VC/CC/CS).
* Frame: Thermal Plastic ,UL94V-0
* Impeller: Thermal Plastic ,UL94V-0
* Operation Temperature:-10℃~70℃
* RH Storage Temperature:-40℃~80℃
* Impedance Protected
* Reverse Polarity Protected
Quantity :

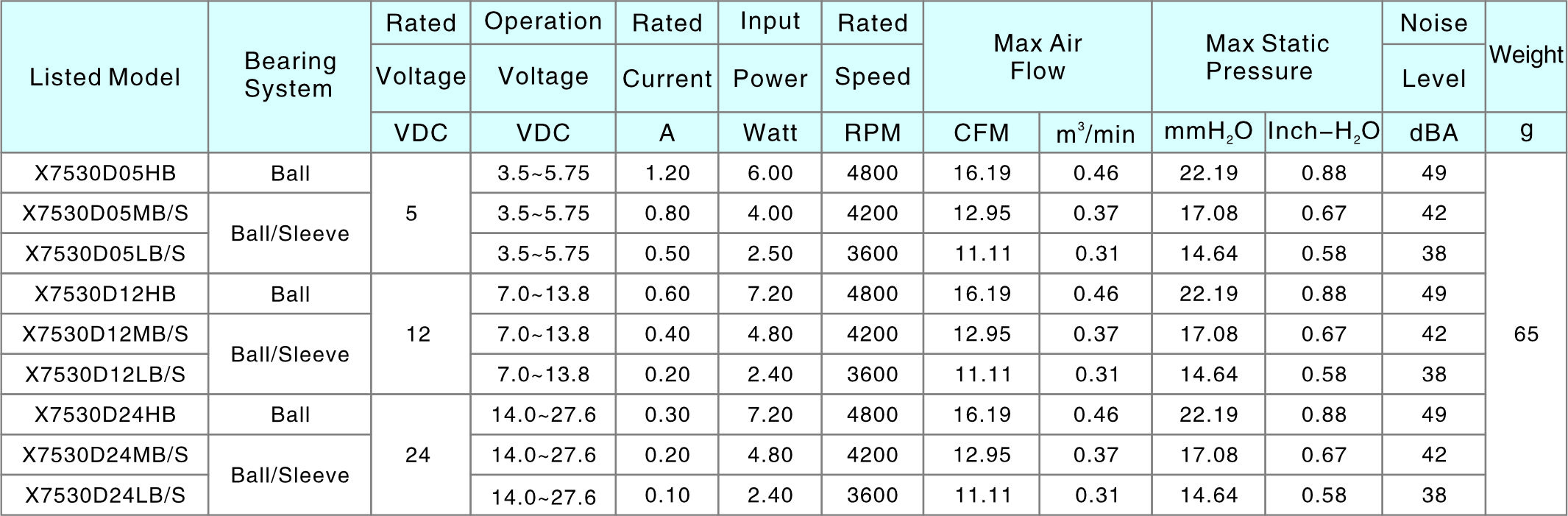

7530 DC brushless fan , Cooling fan , DC Blower fans, DC Fan

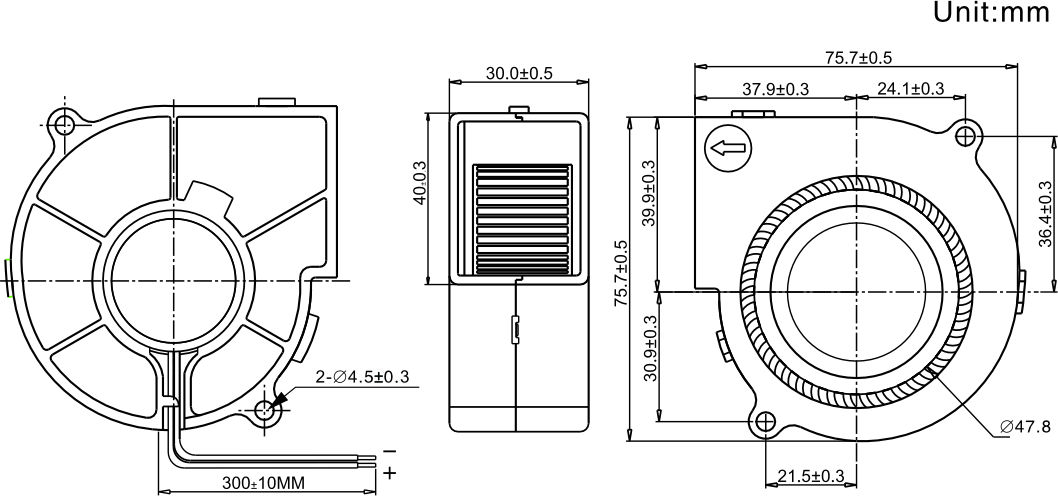

▲ Size: 75*75*30mm
▲Voltage: DC 5V-24V
▲Current: 0.1-1.2A
▲ Speed: 3600-4800rpm

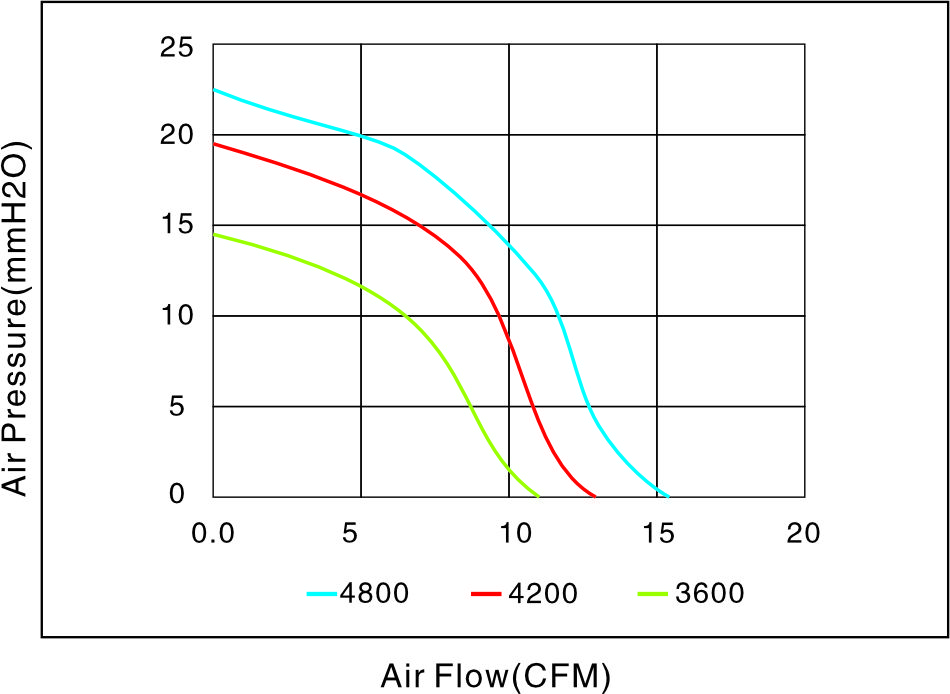

▲Total Airflow: 11.11-16.19CFM
▲Air Pressure: 14.64-22.19mmH2O
▲Noise Level: 38-49dBA
▲ Size: 75*75*30mm
▲Voltage: DC 5V-24V
▲Current: 0.1-1.2A
▲ Speed: 3600-4800rpm
▲Total Airflow: 11.11-16.19CFM
▲Air Pressure: 14.64-22.19mmH2O
▲Noise Level: 38-49dBA
